Posts

42" Standard Post

(1965-10)

Our 42" Post screws into any of our base plates to provide a support stanchion for cables at 42" and 21" heights. Cable height can be adjusted using appropriate base plates. Posts provide an OSHA compliant 200-pound side load and a 5,000 pound tie-off point provided base plates are attached appropriately. Locking cable guides accept cable up to 1/2" in diameter. Plastic sheath is provided to allow easy removal of post in situations where concrete is poured around post. No tools are required, allowing for fast installation and removal.

Cable, turn buckles and crosby clamps are to be supplied by others.

Installation: Screw posts fully into the base plates and run up to a 1/2" diameter cable (supplied by others) through cable locks and tension per OSHA standards with 1/2" turn buckles. Clips are to face the interior of building with cables installed on the interior side of posts/building. POST CAN BE USED FOR A TIE-OFF FOR ONE MAN ONLY. TIE-OFF MUST BE BETWEEN UPPER AND MID CABLE ONLY. Ensure all posts and accessories are fully screwed into base plates before use.

Warning - System does not allow for a tie-off to the cable.

60" Standard Post

(1965-15)

Originally designed for Bovis Lend Lease, our 60" Post is made to accomodate a 60" height requirement. Post screws into any of our base plates to provide a support stanchion for cables at 60", 42" and 21" heights. Cable height can be adjusted using appropriate base plates. Posts provide an OSHA compliant 200-pound side load and a 5,000 pound tie-off point provided base plates are attached appropriately. Can be used as a tie-off point at or below 42". Locking cable guides accept cable up to 1/2" in diameter. Optional cable attachment is available for use at bottome of post for lower debris net attachment point. Plastic sheath is provided to allow easy removal of post in situations where concrete is poured around post. No tools are required, allowing for fast installation and removal.

Cable, turn buckles and crosby clamps to be supplied by others.

Installation: Screw posts fully into the base plates and run up to a 1/2" diameter cable (supplied by others) through cable locks and tension per OSHA standards with 1/2" turn buckles. Clips are to face the interior of building with cables installed on the interior side of posts/building. POST CAN BE USED FOR A TIE-OFF FOR ONE MAN ONLY. TIE-OFF MUST BE BETWEEN UPPER AND MID CABLE ONLY. Ensure all posts and accessories are fully screwed into base plates before use.

Warning - System does not allow for a tie-off to cable.

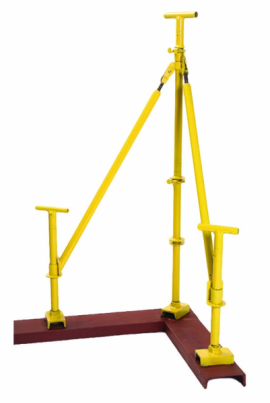

Corner Posts

(1965-80: 42")

(1965-85: 60")

EZ Corner Posts are available in two different heights and are designed to be used anywhere a cable needs to be terminated. Typical applications include roof level corners, around elevator shafts, around stairwell openings, and on straight, long runs that require intermediate termination points. Attachment points and braces swivel to adjust to any angle. Braces transfer tension loads back into the building. Each Corner Post includes brace units.

Cables, turn buckles and crosby clamps to be supplied by others.

Installation: Screw posts fully into the base plates and run up to a 1/2" diameter cable (supplied by others) through cable locks and tension per OSHA standards with 1/2" turn buckles. Clips are to face the interior of building with cables installed on the interior side of posts/building. POST CAN BE USED FOR A TIE-OFF FOR ONE MAN ONLY. TIE-OFF MUST BE BETWEEN UPPER AND MID CABLE ONLY. Ensure all posts and accessories are fully screwed into base plates before use.

Corner posts/center-support posts have extra stabilizers to support tightening the cable around corners and on long straight reaches. We recommend corner posts be used at all transitions of more than 45 degrees. We recommend center-support posts be used whenever a straight run exceeds 104'. When using a center-support, cable must be terminated at the center-support post so that when the cable is tightened the center-support post transmits the load to the beam. Where a corner or center-support post is needed, two (2) additional base plates need to be welded 23" from the post that will be supported, as measured from the center of the post to the center of the base plate.

Warning - System does not allow for a tie-off to the cable.

39" Erecting Post with Lifeline Pass Through

(1965-145B)

This post provides a 100% tie-off point during the building erection phase. It's innovative design eliminates the need to disconnect from a lifeline, but allows it to pass through the top of the post to easily relocate.

Cable, turn buckles and crosby clamps to be supplied by others.

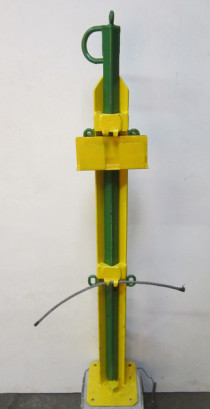

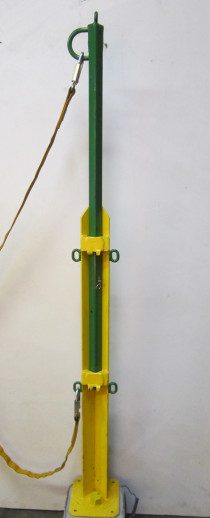

Big Foot - 72"

(1965-600)

This post is designed for use with a HLL that can run 60' and that is incorporated into our guard rail system.  It has the ability to receive cable at 21" and 42" plus a provision for wood bracket attachments.  When the post is extended it allows for a 6' HLL.  This post attaches into embeds with a heavy duty bolt and expansion anchor.

(HLL, energy absorbers, cable, turn buckles and crosby clamps are to be supplied by others)

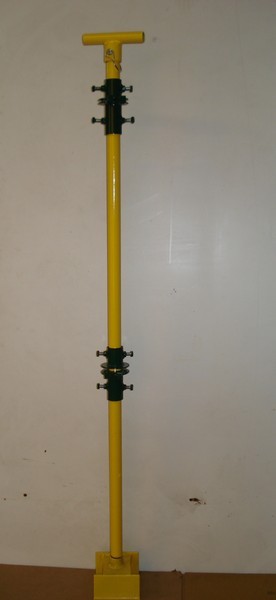

54"Post w/adjustable cable guides

(1965-605)

This post features adjustable guides.  As the deck and slab increase in height the cable guides are moved higher always maintaining the OSHA 21"/42" standards.

The top handle is removable to accommodate for a d-ring and toe board accessories.

Warning - System does not allow for a tie-off to the cable

Cable, turn buckles, crosby clamps to be supplied by others. Base Plate not included.

THIS POST IS ALSO AVAILABLE IN 66".

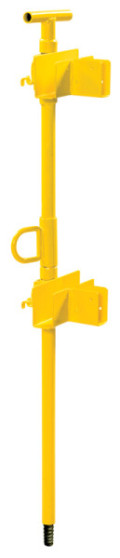

42" Universal Post with Dual Wood Rail Brackets and D-Ring

(1965-200)

This post features dual wood rail brackets and a D-ring. It is designed for use at the perimeter of elevator shafts and stairwells.

Installation: Screw posts fully into the base plates. Run a 1/2" diameter cable (supplied by others) through cable locks and tension per OSHA standards with 1/2" turn buckles. Clips are to face the interior of building with cables installed on the interior side of posts/building. POST CAN BE USED FOR A TIE-OFF FOR ONE MAN ONLY. TIE-OFF MUST BE BETWEEN UPPER AND MID CABLE ONLY. Alternatively, 2" x 4" rails may be used in lieu of cable with maximum spacing of 8' on center as per OSHA standards. Ensure all posts and accessories are fully screwed into base plates before use.

Cable, turn buckles and crosby clamps to be supplied by others.

Warning - System does not allow for a tie-off to the cable.



THIS ITEM HAS BEEN DISCONTINUED EFFECTIVE 12/01/2012 (Replaced with standard post and clamp on d-ring and toeboards)
