Fall Arrestors & Anchors

D-Ring Fall Arrestor with Roof Support

(1965-30)

D-Ring screws into a base plate to provide a 5,000 pound load tie-off point. Can be used during the construction phase on all floor levels, and on the roof following construction.

Heavy Duty D-Ring Fall Arrestor (10" Shaft)

(1965-260)

This new and improved D-Ring is a redesign of our original D-Ring, but now allowing for easier use in an increased number of applications, and extra tall. D-Ring screws into a base plate to provide a 5,000 pound tie-off point. Can be used during the construction phase on all floor levels, and on the roof following construction.

(Base Plate not included)

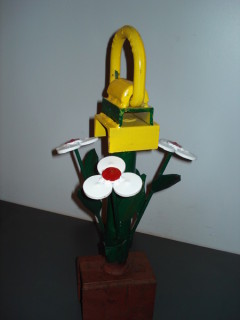

Heavy Duty D-Ring Fall Arrestor/Flower Anchor

(1965-380)

This anchor was designed for live roof installations.  The anchor/flower is rated for 10,000 lbs. while aesthetically pleasing to view.  It can be fabricated to 16" high and fits into all our base plates.  Flowers can be painted to customer's choice.

(Base plate not included)



 Adhesive Attached

Base Plate Kit

(1965-360)

A 6" x 9" base plate adhered with a structural grade epoxy adhesive.  After prepping both surfaces and applying the epoxy adhesive, this system provides  a 5,000 lb. anchor point that is chemically attached. This kit comes with two (2) base plates, two (2) D-Rings, and two (2) epoxy packets.

Steep Roof Permanent Safety Bracket

(1965-205)

This bracket is installed with (4) # 14 HD roofing screws approximately  3 3/4"long.  Secure the bracket to the wood roof deck and into a minimum of 2 x 6 rafters.  Shingles are then installed over bracket for a permanent attachment.  (Screws not included)

Steep Roof Anchor

(1965-385)

This anchor may be attached into a minimum 2" x 6" rafter.  It requires (3) 3/8" x 3 1/2" toggle bolts.  It is designed for one man only.

When installing the ground clearance and pendulum effect must be considered.

DO NOT INCORPORATE INTO A HLL.

(Bolts not included)
