Clamps

 I-Beam Clamp, 8"-12"

(1965-130)
Designed for use on bridge structures. Allows attachment to steel I-beam without welding or drilling. Accommodates I-beams from 8” to 12” wide and up to 2 1/2" thick.

(Cable, turn buckles and crosby clamps to be supplied by others)

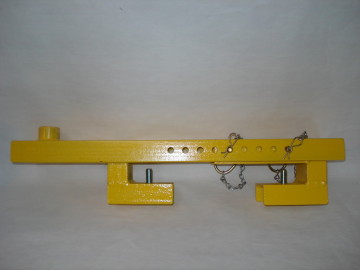

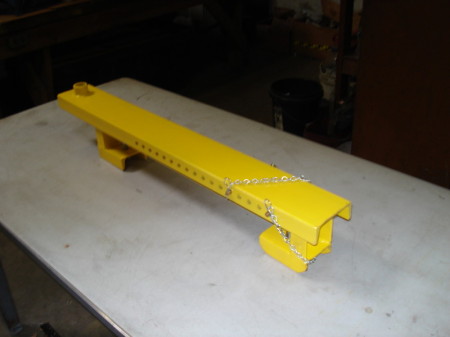

 I-Beam Clamp, 12"- 24"

(1965-135)

Designed for use on bridge structures.  Allows attachment to steel I-beam without welding or drilling.  Accommodates I-beams from 12"-24" wide and up to 2 1/2" thick.

(Cables, turn buckles and crosby clamps to be supplied by others)

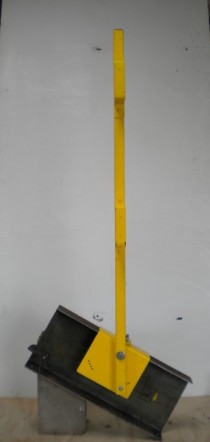

 2-in-1 Parapet Wall/Slab Clamp

(1965-110)
Can be attached to parapet walls or rotated 90 degrees and attached to the edge of concrete floors. Accommodates walls and floors from 6" to 14" thick.

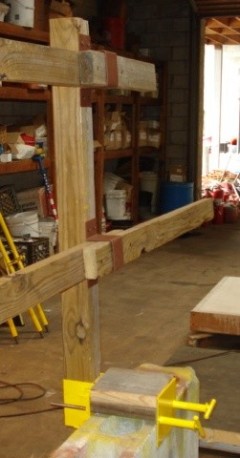

Slab Clamp for Wood Rails

(1965-290)

This clamp provides the ability to control the height of slab grabber using a 4 x 4 wood post. The horizontal 2" x 4" support brackets are supplied with clamp.

 (Lumber not included)

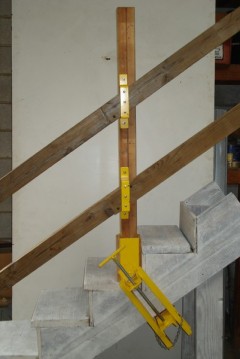

Metal Stair Clamp for Wood Rails

(1965-320)

This attaches to the stair stringer.  The clamp is compression type designed for 30 to 45 degree stair angle.  It will attach either left or right side.  The 2 x 4 wood brackets are supplied with the clamp.

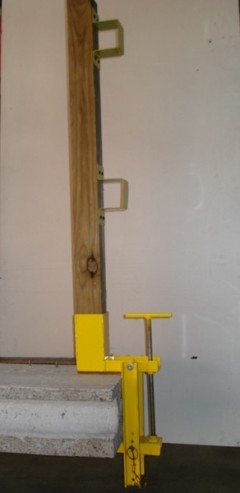

Articulating Concrete Stair Clamp for Wood Posts

(1965-340)

This can be installed on concrete or wood stair riser.  The attachment is accomplished by compression.  The 2 x 4 wood brackets are supplied with clamp.

(Lumber not included)

Adjustable Masonry Block Wall Clamp for Wood Rails

(1965-295)

This provides a guardrail system when constructing masonry block wall.  Attachment is accomplished by embeds and 1/2" coil rods installed in mud joint at bond beam elevation.  The 2 x 4 brackets, embeds and tubes are supplied with clamp.

(Lumber not included)
